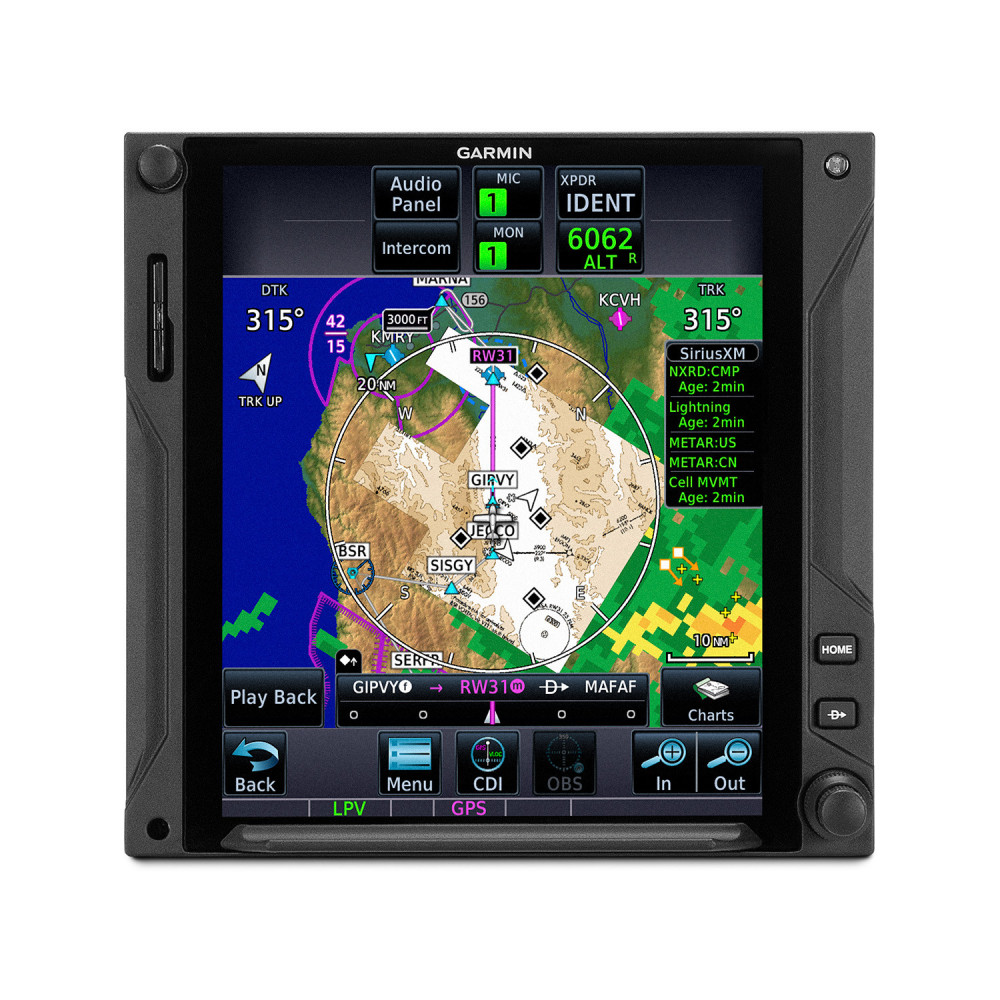

Garmin GTN 725Xi - GPS/MFD

Name: Garmin GTN 725Xi - GPS/MFD
Brand: GARMIN
SKU: 010-02000-01

Cod produs : 010-02000-01

ACEST PRODUS SE ADUCE LA CERERE.

VA RUGAM SA NE CONTACTATI PENTRU O COTATIE DE PRET SI TERMEN DE LIVRARE.

Out of Stock

Cantitate

Adaugă la Favorite

Garanția produselor și serviciile post-vânzare

Livrare, transport și ridicare din Showroom

Condiții de returnare și dreptul de retragere

Folosim plăți sigure:

TAP INTO A NEW GENERATION OF FASTER, SMARTER AVIONICS

With more pixels, more processing power, more speed and performance, our GTN 725Xi system brings exciting new growth capabilities to the industry’s premier GPS/MFD platform.

Visualize your entire flight plan, including holds and approaches on a big 6.9” touch display.

Faster is better. High-speed processors cut boot-up time by 50% over earlier GTN models.

Fly the approaches you want — from visual glidepaths to LPV, RNAV and more.

It’s interface-friendly with a wide range of existing avionics, autopilots and flight displays¹.

Wirelessly load flight plans and database updates with an optional Connext^® link.

Upgrade? New GTN Xi series offers easy slide-in upgrade for existing GTN avionics.

Brighter, faster, sharper, better.

DO-IT-ALL TOUCHSCREEN

Intuitive touchscreen interface provides quick access to navigation, radio tuning, multifunction display features and more.

LIGHTNING-FAST RESPONSE

Powerful dual-core processors boost the GTN Xi series graphical display capabilities — with faster zooming, panning and map rendering on the display.

HIGH-RESOLUTION DISPLAY

With almost double the pixel count of its predecessor, the GTN Xi series features wider viewing angles and one of the highest-resolution displays ever offered in this class of avionics.

Work-saving ways to tune and display.

MULTIFUNCTION DISPLAY

Supporting multiple inputs, the 6.9” display can put moving maps, terrain, traffic², weather², airport diagrams and more at your fingertips.

EASY DATA ENTRY

Use the on-screen QWERTY keyboard or traditional concentric knobs to enter frequencies, waypoint identifiers, routings and more.

TELL IT, TUNE IT

Available Telligence™ voice control technology helps reduce pilot workload by responding to hundreds of spoken commands with the press of a button on the yoke².

PINCH, SWIPE GESTURES

A quick finger swipe lets you pan across the map display. Or use a smartphone-like pinch-to-zoom motion to scale up or down on any map, traffic or terrain page.

SPACE-SAVING AUDIO

To streamline your avionics stack, GTN 725Xi can double as the control panel for your audio system when it’s paired with one of our GMA™ 35 remote audio units (sold separately).

QUICK PAGE ACCESS VIA KNOBS

The unit’s dual concentric knob controls now offer quick access to select pages. The outer knob can cycle through as many as 9 custom-assigned pages, with the inner knob supporting functions such as zooming or scrolling on the page displayed.

Safety-enhancing Smart Glide Technology

ENGINE-OUT HELP

In the case of an engine power loss situation, GTN Xi offers Smart Glide technology to help reduce your workload — so you can focus more attention on other tasks during the emergency.

EASY ACTIVATION

Smart Glide requires a compatible flight display to be paired with GTN Xi. The Smart Glide system can be activated with the press of an optional dedicated panel button or by a long press of the Direct-to button.

RECOMMENDS AN AIRPORT

Considering the aircraft’s estimated glide range (including terrain and obstacles), the system recommends a suitable airport for landing and offers a list of alternatives, or it advises if no airport is estimated to be within glide range.

DIRECT-TO ROUTING

If an airport is available, it creates a Direct-to route to the selected airport. And if you’re equipped with a compatible Garmin autopilot, Smart Glide will automatically engage the autopilot in IAS mode at best glide speed — using the GPS guidance to fly the aircraft near the selected airport.

EMERGENCY INFORMATION

Smart Glide technology provides information for the selected airport while providing a shortcut to enter an emergency code in a compatible transponder.

LANDING

Once the aircraft is near the airport, the pilot resumes control and prepares the aircraft for arrival — for example, bleeding off altitude and making the final approach to the selected runway — then lands the aircraft.

Streamline your flight planning and navigation.

SEE THE FULL PICTURE

Graphical routing on the display lets you visualize your entire flight plan, including departures, arrivals, visual/instrument approaches, holding procedures and more.

FAST FIND

As soon as you start typing, the GTN Xi FastFind feature uses quick predictive logic to suggest airport and waypoint entries by using current GPS position. Just select and go.

AIRWAYS, YOUR WAY

Victor airways and high-altitude jet routes can be overlaid on the map. For easy IFR routings, view airway segments available from a waypoint and corresponding exit options.

“RUBBER BAND” REROUTES

This handy feature lets you grab a flight plan leg on the screen, and then stretch or move it to adjust for a deviation or ATC amendment to your flight plan.

VIRTUAL MAP TOPOGRAPHY

By referencing built-in terrain, mapping and obstacles databases, GTN 725Xi shows detailed surface features, cities, airports, SUAs and more on the dynamic map display.

TERRAIN ALERTING

A built-in database provides color-coded display overlays to warn when potential terrain conflicts loom ahead. Class A or B TAWS alerting is optionally available.

VIEW CHARTS IN CONTEXT

Our standard FliteCharts^® or optional Jeppesen^® style ChartView™ plates³ provide georeferenced approaches and terminal procedures.

DIRECT CONNECT

A Direct-to key on the bezel lets you quickly enter a direct course for any selected waypoint. A menu of nearest airports and flight plan waypoints makes for easy entry.

Fly approaches, glidepaths, holding patterns and more.

MORE APPROACH OPTIONS

The WAAS/SBAS-certified GPS receiver expands your landing options, enabling GPS-guided LPV glidepath approaches down to ILS-comparable minimums as low as 200’.

CLEARED FOR THE VISUAL

GTN Xi can give advisory visual approach guidance based on a published glidepath or a 3-degree slope from the runway threshold (with terrain/obstacle clearance).

AUTOPILOT INTERFACE

Precise course deviation and roll steering outputs can be coupled to select autopilots, enabling virtually all IFR flight procedures to be flown automatically.

HOLDING PATTERNS

IFR pattern entries can be tricky. GTN 725Xi lets you easily create and execute holding patterns over a published or user-defined waypoint.

SEARCH AND RESCUE

For aerial surveillance, common search pattern types — including orbit, parallel line, expanding square and sector search — can be loaded into your flight plan on the GTN 725Xi navigator².

SUPPORTS VNAV AND MORE

With our GFC™ 500 and GFC 600, GTN 725Xi supports advanced modes and features such as vertical navigation profiles, radius-to-fix legs, missed approaches and more.

SAFETAXI^® DATABASE

Upon landing, georeferenced SafeTaxi diagrams on the display automatically help track your location on hundreds of airports.

Add ADS-B traffic, weather and more.

ADS-B DATA LINKS

With available Garmin ADS-B “In” equipage solutions, GTN 725Xi can display up to 60 ADS-B traffic targets as well as subscription-free U.S. weather data.

TARGETTREND™ TRACKING

ADS-B based TargetTrend relative motion tracking on the GTN Xi display gives pilots a faster, more intuitive way of judging traffic closure rates and trajectories.

TERMINALTRAFFIC™ DISPLAY

Providing a dynamic display of ADS-B-equipped aircraft and ground vehicles, this technology helps pilots avoid traffic conflicts within the airport environment.

ACTIVE TRAFFIC SOLUTIONS

For more advanced traffic surveillance capability, GTN Xi can integrate with select TAS or TCAS/ACAS systems, including our GTS™ family of ADS-B enhanced products.

SIRIUSXM^® SERVICE

When paired with an optional GDL^® 69 datalink receiver, GTN Xi can incorporate SiriusXM satellite weather coverage — plus audio entertainment features⁴.

WORLDWIDE COMMUNICATIONS

Want global weather, radar imagery and two-way text/voice communications from the air? Connect your GTN 725Xi with our optional GSR 56 satellite link⁴.

ONBOARD RADAR

To scan your own storm cells, the large-format GTN 725Xi can double as a display for our Doppler-capable GWX™ 75 series digital weather radars — as well as select third-party radar systems⁶.

Wirelessly connect your electronic flight bag.

CONNECTED COCKPIT

Use optional Connext technology to stream information between GTN Xi and compatible Garmin portables or mobile devices running the Garmin Pilot™ or FltPlan Go apps⁵.

FLIGHT PLAN TRANSFER

Save time by creating your flight plan on your mobile device at home, then use Connext² to wirelessly upload the data into your GTN Xi during preflight at the airport.

DATA COMM INTEGRATION

A Flight Stream 510 Connext gateway⁵ adds Database Concierge to your GTN Xi navigator. Upload databases from your tablet in minutes — then let automatic sync with your avionics do the rest.

FLIGHT STREAM

In addition to GPS data, a compatible Connext wireless gateway⁵ can stream ADS-B traffic, weather and backup attitude data to your mobile device in real time².

Integrate FAA Data Comm for text-based ATC clearances.

READ THE DIRECTIONS

With FAA Data Comm approval for GTN 725Xi, Garmin brings text-based ATC datalink messaging⁷ to a much broader range of GA aircraft. Replacing many radio voice calls with automated IFR departure and en route clearances via text link helps enhance efficiency, smooth workflows and reduce miscommunication errors.

A GROWING NETWORK

As part of the FAA’s NextGen ATC modernization program, Data Comm IFR departure clearance operations are available at some of the busiest airports in the U.S. Plus, most FAA air route traffic control centers are Data Comm-capable for en route link services to aircraft flying above 16,000’.

DATA COMM INTEGRATION

On applicable aircraft, Data Comm integration⁵ with GTN 725Xi and, optionally, our TXi™ series flight display does more than simplify clearance delivery. It also enables frequencies, routes, altitudes and other data to be loaded directly from the transmitted clearance to your avionics — a real work-saver in the cockpit.

¹Reference the supported interfaces tab for compatibility details

²Optional feature; additional hardware may be required

³Jeppesen subscription required for use with optional Garmin ChartView™ (sold separately)

⁴Sold separately; subscription plan(s) required

⁵Requires optional enablement

⁶Sold separately

⁷Paid annual FAA Data Comm subscription required

Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. Jeppesen is a registered trademark of Jeppesen Sanderson, Inc. its subsidiaries or affiliated companies.

Cod produs : 010-02000-01

Out of Stock

TSO applicability: C74d Class A; C112e; C146e Class 3; C151d Class A, B; C157b Class 1, 2; 165b; C194; C195b Class B1, B3, B5, B7; C209
Display size: 6.9" (175.3 mm) diagonal
Display resolution: 834 pixels (W) x 986 pixels (H)
Unit bezel height: 6.00" (152.0 mm)
Unit bezel width: 6.25" (159.0 mm)
Unit depth with connectors: 11.25" (286 mm) (measured from face of aircraft panel to rear of connector backshells)
Unit weight: 5.7 lbs (2.60 kg)
Input voltage range: 11 VDC - 33 VDC
Operating temperature range: -20° C to 55° C (-4° F to 131° F)
Number of GPS channels: 15 (12 GPS and 3 GPS/WAAS/SBAS)
LAT/LON position accuracy: <1.25 meter RMS horizontal, < 2 meter vertical, with WAAS
Maximum velocity: 1,166 knots
Position update Interval: 0.2 sec (5 Hz)

Garmin products have been designed for compatibility with a wide range of avionics. To confirm compatibility of Garmin equipment with your specific aircraft make/model and current avionics configuration, please consult your Authorized Garmin Dealer.

Interface	Manufacturer	Model	Notes/Info
Air Data Computer	B & D	90004-003
	Honeywell (Bendix/King)	KDC 281 KDC 481
	Insight	TAS 1000
Altitude Serializer/Encoder	Garmin	GTX 327
	ACK Technologies	A-30 (Mod 8 and above)
	ARNAV	FC-10 FT-10
	Electronics International	FP-5L
	Icarus Instruments	3000
	JP Instruments	EDM-700
	Sandia	SAE 5-35
	Shadin	833811-00 (AIS-380) 8800T 9000T 9200T F/ADC-200 F/ADC-2000 91204XT(38)D (Miniflo-L) 91053XP (Digiflo-L) 91053XT-D (Digiflo-L) 912802-( ) (Digidata)
	Trans-Cal Industries	IA-RS232-X SSD120
Audio Panel	Garmin	SL10 SL10MS SL10M SL10S SL15 SL15M GMA 340 GMA 347 GMA 35(c) GMA 350(c)/350H(c)
	Honeywell (Bendix/King)	KMA 24 KMA 24H-70/71 KMA 26 KMA 28
	PS Engineering	PMA 6000 PMA 7000 Series PMA 8000 Series
Autopilot	Garmin	GFC 500 GFC 600
	Bendix	M4C M4D
	Century	I/II/III/IV 21/31/41 2000 Trident AK 1081
	Cessna	300B/400B/800B 300 IFCS/400 IFCS/800 IFCS/1000 IFCS
	Collins	APS 65 ( )
	Honeywell (Bendix/King)	KAP 100/140/150 KFC 150/200/250/300 KFC 225/275/325
	Sperry	SPZ 200A/500
	S-TEC	System 20/30/40/50/55/60-1/60-2/60 PSS/65 System 55X ST-901
Datalink Weather Display and Control	Garmin	GDL 69/69A GSR 56	GDL 69A also provides SiriusXM radio entertainment. GSR 56 also provides text/voice communication
DME Control	Collins	DME 40 DME 42
	Honeywell (Bendix/King)	KN62/62A KN63 KN64 KDI 572/574 KDM 706
	Narco	DME 890 IDME 891
EFIS	Garmin	G500/G600 TXi Series G5 G3X Touch
	Avidyne	EXP5000
	Honeywell (Bendix/King)	EFS 40/50 (SG 465)
EHSI	Sandel	SN 3308 SN3500/4500
FIS-B Weather Display and Control	Garmin	GDL 88
Fuel/Air Data	Garmin	GTX 327
	ARNAV	FC-10 FT-10
	Electronics International	FP-5L
	JP Instruments	EDM-700
	Shadin	F/ADC-200 F/ADC-2000 91204XT(38)D (Miniflo-L) 91053XP (Digiflo-L) 91053XT-D (Digiflo-L) 912802-( ) (Digidata)
IRU/AHRS	Collins	AHS-85E
Lightning Detection Display and Control	L-3 Communications	WX-500
Multifunction Display	Garmin	GMX 200 MX20
Multifunction Display	Avidyne	EX500 EX5000
NAV Indicator	Garmin	GI 102/A GI 106/A
	Century	NSD 360A NSD 1000
	Collins	331A-6P 331A-9G PN101 (331A-3F/3G) IND-351D
	Honeywell (Bendix/King)	KI 202A/203/204/206 KI 208/A KI 209/A KI 525A KPI 552/B KPI 553/A/B
	Mid Continent	MD222-402 MD222-406 MD200-302/303/306/307
	Sperry	RD 444 RD 550A RD 650
	S-TEC	ST 180
Synchro Heading Source	Bendix/King	KI-525A
TAS/TCAS/TIS Traffic Display and Control	Garmin	GTS 800/820/850 GTX 330/33/330D/33D
	Avidyne (Ryan)	TAS 6XX (TCAD 9900BX)
	Honeywell (Bendix/King)	KMH 880 (KMH 820) KMH 980 (KMH 920) KTA 870 (KTA 810) KTA 970 (KTA 910)
	L-3 Communications	SKY497 (Skywatch) SKY899 (Skywatch HP)
Terrain Avoidance and Warning System	Honeywell (Bendix/King)	KGP 560 KMH 880 (KMH 820) KMH 980 (KMH 920)
Transponder Display and Control	Garmin	GTX 32 GTX 327 GTX 328 GTX 33/33D GTX 330/330D GTX 325/335(R)/345(R)
Weather Radar Display and Control	Garmin	GWX 68 GWX 70 GWX 75
Weather Radar Display and Control	Bendix/King	RDS 81 (RS 811A) RDS 82 (RS 181A) RDR 2000 (ART 2000) RDR 2100 (ART 2100)

Artificial Horizon (AHRS)
Pitot/Static indication of IAS, TAS, Altitude, Vertical speed
Dual band 978 MHz and 1090 MΗz ADS-B receiver for traffic and weather information
Ground speed (via GPS)
Altimeter (via Pitot/static or GPS)
Vertical speed (via Pitot/static or GPS)
Turn coordinator
Slip ball
Compass
True course indicator (via GPS)
Deviation from true track indication
Instrument Offline Indicator
Android/IOS wireless connection via WiFi
Android/IOS wired USB connection via TalosAvionics USB data & charging adaptor
Ability to charge Android/IOS smartphone or tablet via the TalosAvionics USB data & charging adaptor
Confirmed support of Android smartphones & tablets: Samsung, HTC, Nexus, Google, Huawei, Lenovo, ZTE, MLS
AHRS in-flight reset recovery in any flight attitude (NOT necessary to perform straight and level flight for AHRS recovery as other instruments need)
Dual band 978 MHz and 1090 MΗz ADS-B receiver for traffic and weather information
GPS output for driving any autopilot with serial NMEA-9600 input
Flight data recorder
Internal back-up battery
Dimensions: L=5.6”, W=3.0”, H=1.9”
Weight=1.5 lbs
